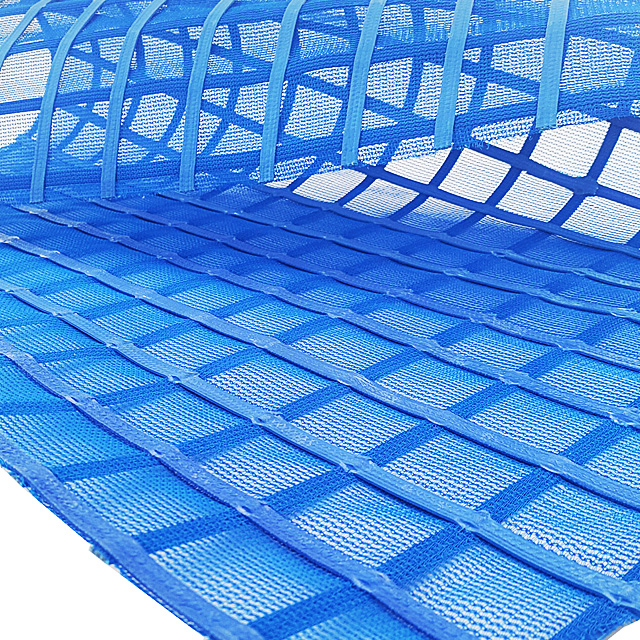

Heavy Duty PVC Edged Scaffold Safety Mesh FR
Introduction:
DKM Heavy Duty PVC Edged Scaffold Safety Mesh FR is producing by a special ultrasonic welding technology which combine with the Sunshade mesh and high tenacity PET yarns & Steel wires reinforced HDPE sheathed straps strictly to make it have excellent tensile strength,superior impact resistance,good corrosion & erosion resistance and reliable protective properties.
ADVANTAGES of DKM Heavy Duty Type Scaffold Mesh FR:
Safety:
• Independently tested of the FR and Impact resistance.
• High tensile strength of strips.
• Superior impact resistance.
• Avoid finger cutting risk.
• Excellent fire redartant.
DKM Heavy Duty Type Scaffold Mesh FR | |
Mesh Aperture Size(mm): | 5cm*5cm(±5mm) |
Straps Type and Strength: | High tenacity PET yarn reinforced HDPE sheathed Strips |
Unit Weight (g/m2): | 760g/㎡(±5%) |
Bearing Capacity per strips: | ≥200kg of each chain |
Mesh Rib Width: | ≥10.0mm |
Mesh Rib Thickness: | ≥1.4mm |
Fire-Resistant: | FR (Reach AS 1530.2 Standard) |
Color: | Blue,Pink,Black or according customization |
Materials of Sunshade Mesh: | 100% Virgin UV resistance HDPE mesh. |
Materials of Strips: | High tenacity PET yarn reinforced 100% Virgin UV resistance HDPE sheathed strips. |
Roll Width: | 0.95m/1.9m/1.95m,etc |
Roll length: | 10m/15m/20m, etc |
