HDPE Geomembranes is made from High Density Polyethylene according to the CRI GM13 standard, it’s resin by film-blowing process, adding carbon black antioxidant, UV-Resistance and Anti-aging materials which with impermeable and ultraviolet resistance properties,provide an impermeable barrier against a wide range of solids and liquids. The HDPE Geomembranes exhibit excellent chemical and UV resistance,impermeability, and high yield strengths, which is widely used for seepage control in special industries, have been widely used for waste containment,aquaculture, water containment, reservoirs, sewage treatment ponds.DHPE Geomembranes have proven to be more cost effective, safe and fast deployment which compared with traditional concrete and compacted clay.
1. Geomembranes made from 100% virgin HDPE materials with excellent physical and mechanic performance.
2. Geomembranes produced by advanced automatic equipment and three-layer pressing technology. Product quality following with GB, GRI and ASTM test standard.
3. Geomembranes with high tearing resistance, strong deformation adaptability.
4. Excellent environmental stress cracking resistance property.
5. Good adaptability to high and low temperature (Service temperature range: -70°C~110°C ).
6. Complete width(1.0m - 8.0m) and thickness specifications(0.2mm - 3.0mm).
7. Good flexibility and High puncture-resisting,tensile strength and elongation.
1. Aquaculture:
HDPE Geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture base on its anti-seepage features.

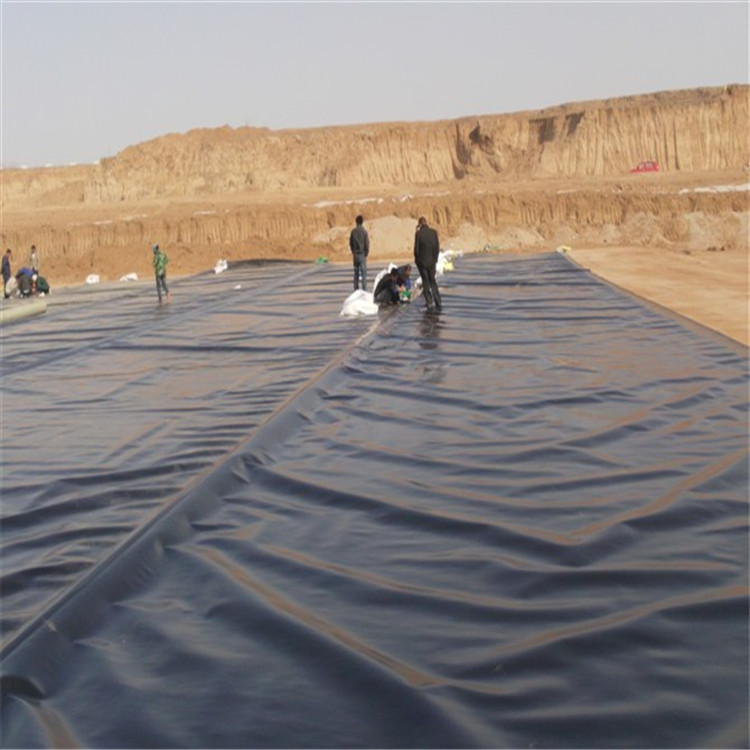

2. Landfill:
HDPE Geomembrane is widely used in the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
3. Foundation Treatment:
HDPE Geomembrane widely used in water and damp proof in basement,building foundation,subway and tunnel.
4. Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool.
DKM HDPE Smooth Geomembrane Technical Data | ||||||||||||||||||||||||||
Test | Unit | Standard | Thickness | Test Frequency | ||||||||||||||||||||||
Mechanical Properties | Thickness | mm | ASTMD5199 | 0.2 | 0.3 | 0.4 | 0.5 | 0.75 | 1.00 | 1.25 | 1.50 | 2.00 | 2.50 | 3.00 | Per roll | |||||||||||
Density | g/cc | ASTMD1505/D792 | 0.94 | 90,000 kg | ||||||||||||||||||||||
Tensile Properties ·yield strength ·break strength ·yield elongation ·break elongation |
kN/m kN/m % % |
ASTMD 6693 Type IV |
3 5 12 700 |
5 8 12 700 |
6 11 12 700 |
7 13 12 700 |
11 20 12 700 |
15 27 12 700 |
18 33 12 700 |
22 40 12 700 |
29 53 12 700 |
37 67 12 700 |
44 80 12 700 | 9,000 kg | ||||||||||||
Tear Resistance | N | ASTM D 1004 | 25 | 38 | 50 | 62 | 93 | 125 | 156 | 187 | 249 | 311 | 374 | 20,000 kg | ||||||||||||
Puncture Resistance | N | ASTM D 4833 | 64 | 96 | 128 | 160 | 240 | 320 | 400 | 480 | 640 | 800 | 960 | 20,000 kg | ||||||||||||
Stress Crack Resistance | hr. | ASTM D 5397 | 500 hr. | per GRI GM-10 | ||||||||||||||||||||||
Carbon Black Content | % | ASTM D 4218 | 2.0-3.0% | 9,000 kg | ||||||||||||||||||||||
Roll size | Dimensional Stability | % | ±2 | |||||||||||||||||||||||
width | m | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | roll size can be customized | |||||||||||||
Length | m | 200 | 200 | 200 | 420 | 280 | 210 | 168 | 140 | 105 | 84 | 70 | ||||||||||||||
Roll Area | m2 | 1400 | 1400 | 1400 | 2940 | 1960 | 1470 | 1176 | 980 | 735 | 588 | 490 |

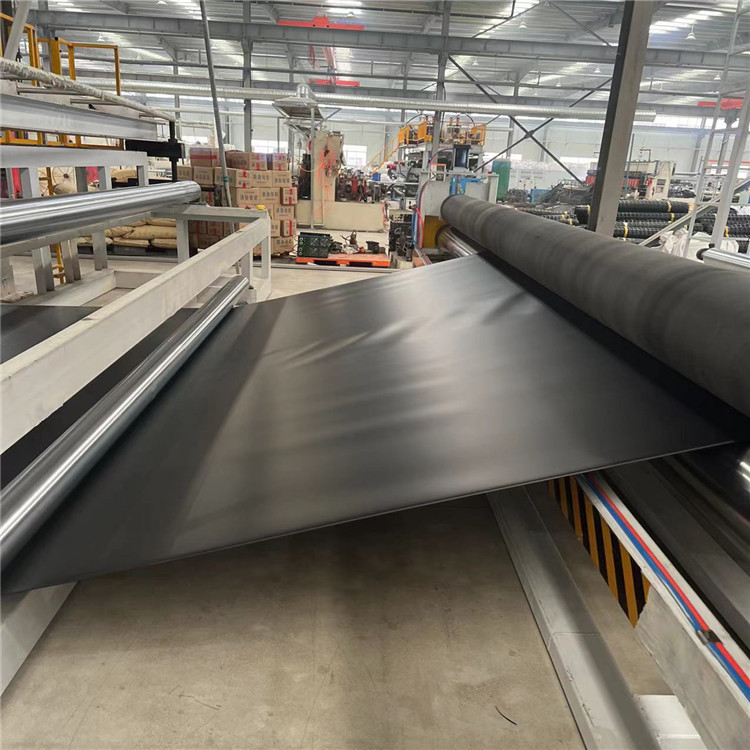

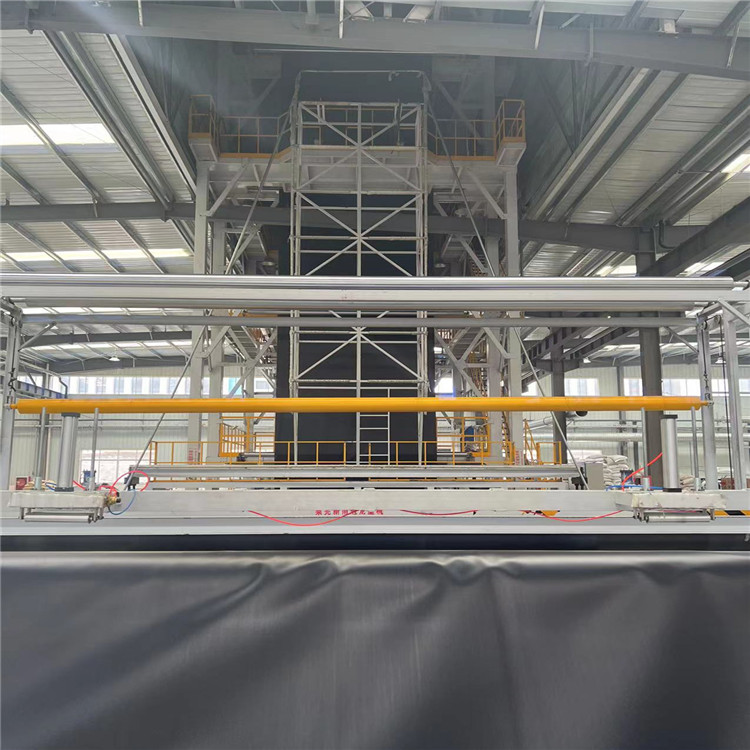

Plant Workshop
Storage
Delivery
Certificates
