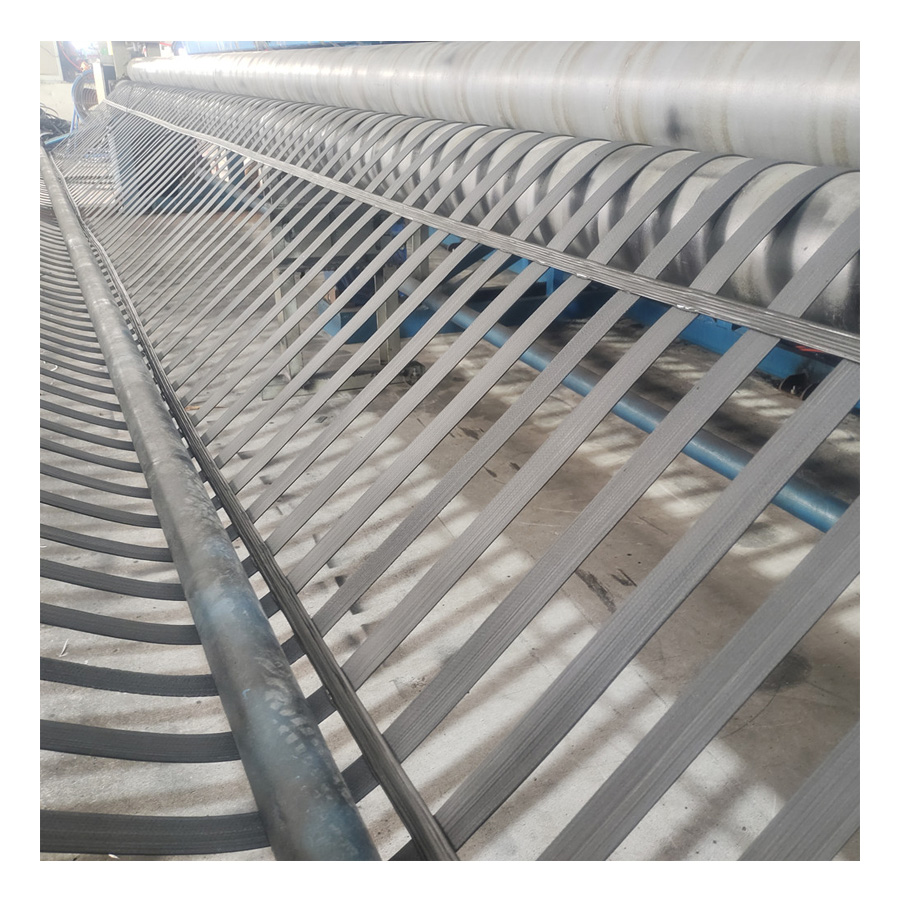

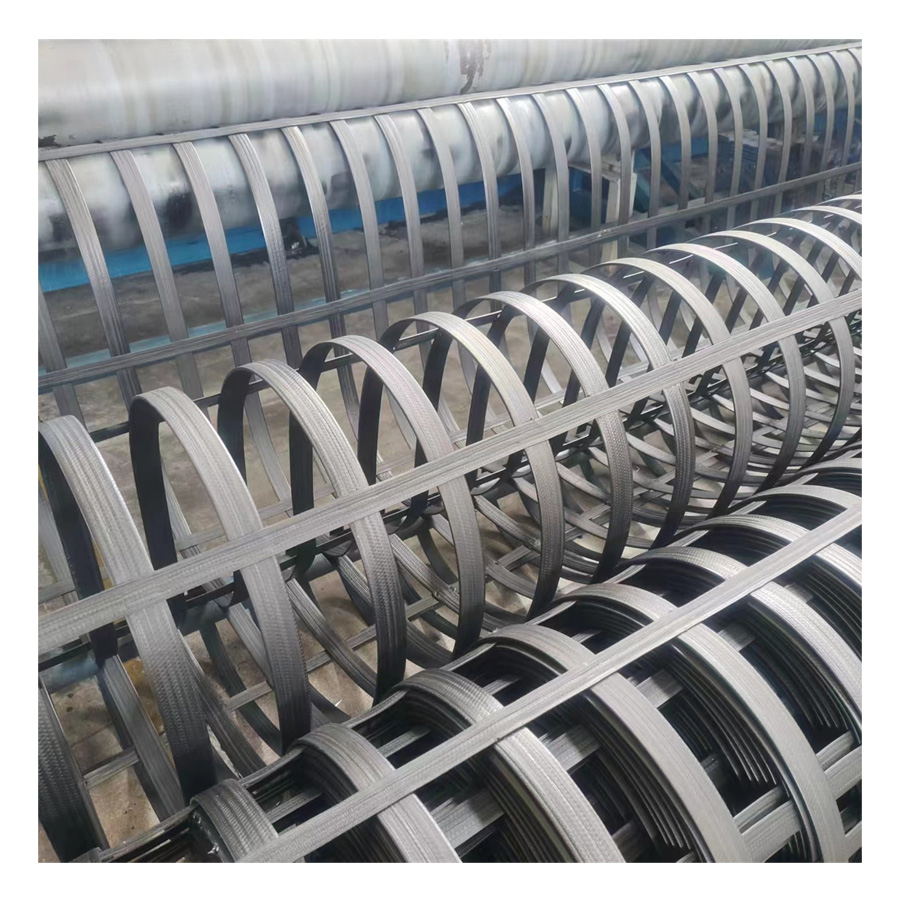

DKM – PET Geogrid also named HDPE Sheathed Polyester Composite Geogrid, it is a high strength biaxial & uniaxial geogrid for soil reinforcement of retaining wall and ground foundation,the product consisted with a biaxial or uniaxial array of composite geosynthetic strips. The strips with high tenacity polyester fibers bundlings and coated with a polyethylene sheath.
PET Geogrid Retaining Wall Systems, designed to provide exceptional strength and durability for various applications. With a professional tone of voice, we aim to highlight the key features of this product.
Our PET Geogrid Retaining Wall Systems boast a high modulus and tensile strength, making them ideal for projects that require superior load-bearing capacity. Whether you're constructing a small residential retaining wall or a large-scale commercial project, our geogrid systems can handle the task with ease.
One of the standout features of our PET Geogrid Retaining Wall Systems is their flexibility and ease of installation. Designed to adapt to various terrains and project requirements, these systems offer a seamless installation process, saving you both time and effort. Our team of experts is readily available to provide guidance and support throughout the installation process, ensuring a hassle-free experience.
Technical Parameter Specification | ||||||||
Spec/ Items | Standard | 50-10 | 80-15 | 100-20 | 150-30 | 200-40 | 300-55 | 400-75 |
Ultimate Tensile Strength Longitudinal ≥(KN/m) |
ASTM D 6637 | 50 | 80 | 100 | 150 | 200 | 300 | 400 |
Ultimate Tensile Strength Transverse ≥(KN/m) | 15 | 15 | 20 | 30 | 40 | 55 | 75 | |
Tolearance | 10% | |||||||
Typical strain at M.A.T.S. Longitudinal Direction ≤(%) | 10.5 | |||||||
Typical strain at M.A.T.S. Transverse Direction ≤(%) | 10.5 | |||||||
Strip Reinforcement Polymer | PET | PET | PET | PET | PET | PET | PET | |
Strip Coating Polymer | PE | PE | PE | PE | PE | PE | PE | |
Strip thickness ≥(mm) | 20 | 20 | 22 | 22 | 22 | 24 | 24 | |
Strip width(Longitudinal ) | 15 | 20 | 20 | 22 | 22 | 24 | 25 | |
Grid Structure | Extruded and welded | |||||||
Materials | HDPE Sheathed strips have Polyester Yarn Composite inside | |||||||
Color | Black | |||||||
Roll Length*Width | 3.90m x 50m | |||||||
Note: The geogrid tensile strength,strip width and thickness are customized. |
