Scaffolding Mesh Rolls with Wire Mesh for Protection



Email: eric@dkgeosynthetics.com
Whatsapp/Wechat: +8613173385722
Availability:
Quantity:
  • Scaffolding Mesh Rolls with Wire Mesh for Protection

Introduction:

Scaffolding Mesh Rolls with Wire Mesh for Protection(Steel Wires Reinforced Type) is producing by a special ultrasonic welding technology which combine with the Sunshade mesh and steel plastic grid strictly to make it have excellent tensile strength,superior impact resistance,good corrosion & erosion resistance and reliable protective properties.

Scaffold mesh is flexible to be ready installed and provide a secure screen for building projects,application designed to improve operation and standard working procedures, it have superior performance and durability in sun, wind,storm and demanding environments. It is durable and easy to rolled up and re-usability multiple times in different projects.



ADVANTAGES of Scaffold mesh (Steel Wires Reinforced Type) :

Safety:

• Independently tested of the FR and Impact resistance.

• High tensile strength of strips.

• Superior impact resistance.

• Folded edge processed effectivly reduce the risk of finger cut.

• Excellent fire redartant.




DKM Scaffold Mesh (Steel Wire Reinforced Type)

Mesh Aperture Size(mm):

5cm*5cm(±5mm)

Steel Wires in each strips

6 steel wires in each strips

Bearing strength per strip

≥200kg of each chain

Unit Weight (g/m2)


850g(±30g) /㎡

Mesh strips Width

≥10.0mm

Mesh strips Thickness

≥1.4mm

Fire-Resistant

Fire Retardant.

Color:

Blue,Red,Black or according customization

Materials:

100% Virgin UV Resistance HDPE shealthed Steel wire reinforced strips combine with HDPE sunshade mesh.

Roll Width:

0.95m/1.9m/1.95m

Roll length:

10m/15m/20m, etc

产品图片 (1) 产品图片 (3)

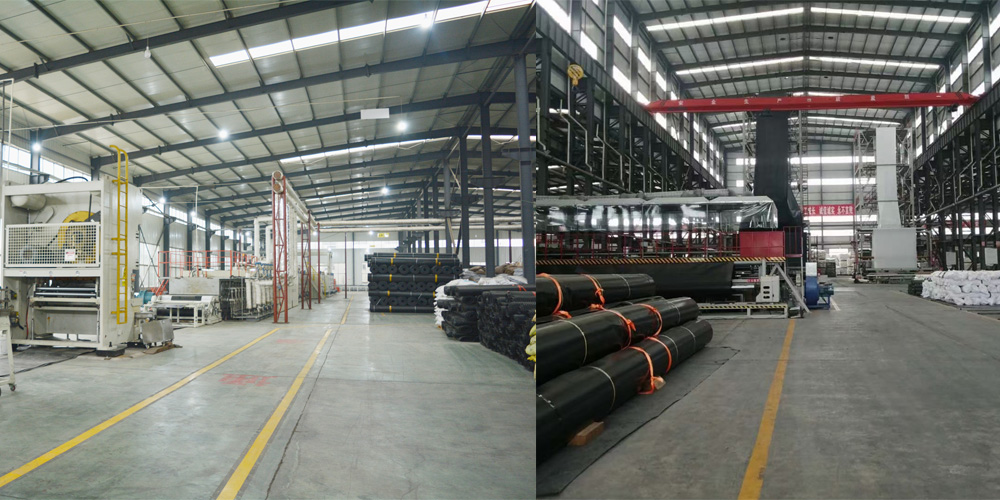

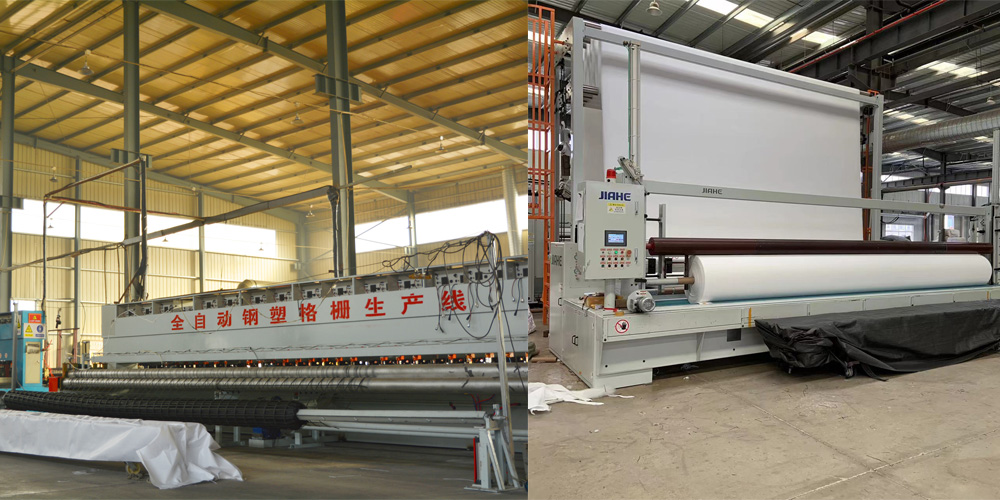

Plant Workshop

车间


车间2

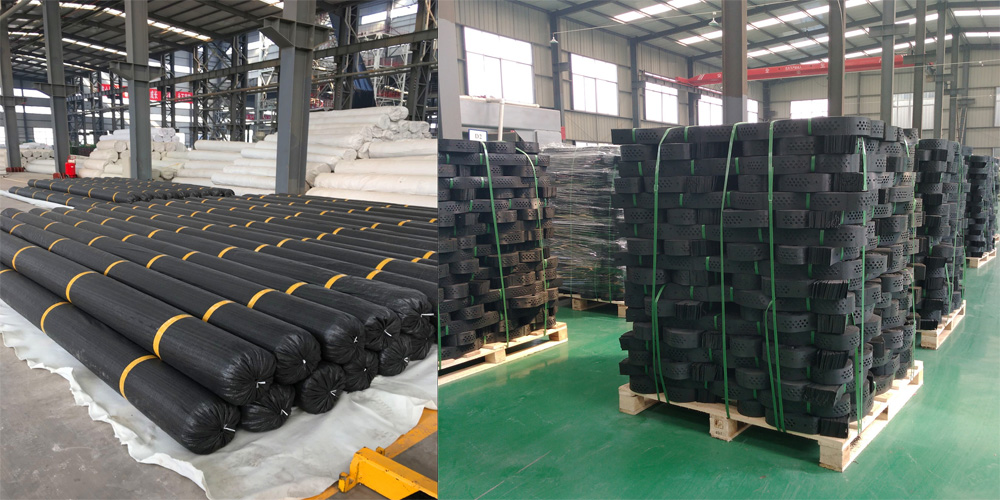

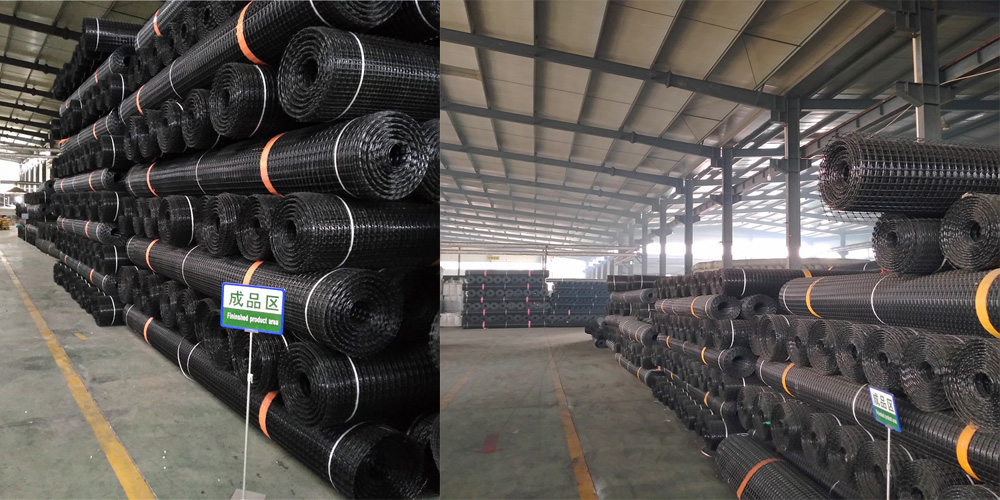

Storage

成品


产品2


Delivery

装柜


装柜1


Certificates


ISO
