DKM Geo Composite Geogrid
DKM Geo Composite Geogrid
It is a composite of a laid geogrid made of high tensile strength polypropylene or polyester ribs with welded junctions and a mechanically bonded nonwoen geotextiles welded within the geogrid structure. It’s with high strength, small creep deformation,and water filter function, suitable for many fields of infrastructure, environmental protection, and hydraulic engineering applications.
•High strength, small creep deformation, suitable for various environmental soils.
•Improve the interlocking of aggregates and reinforcement of soft soil.
•Increase the bearing capacity of the subgrade.
•Restrict the lateral displacement of the soil and subgrade.
• Strengthen the stability of the subgrade.
•It can be used widely in the earthwork engineering.

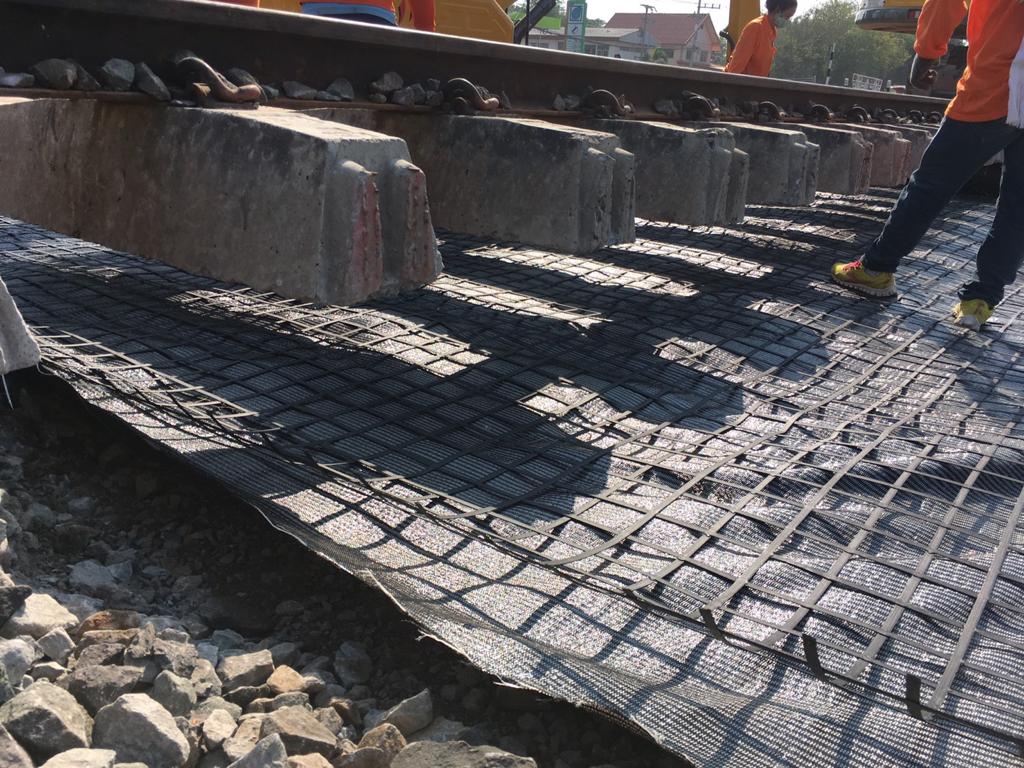

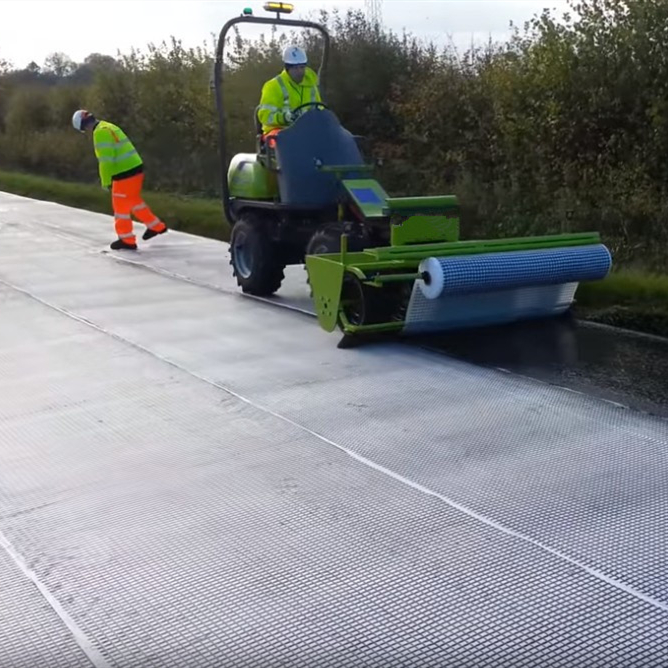

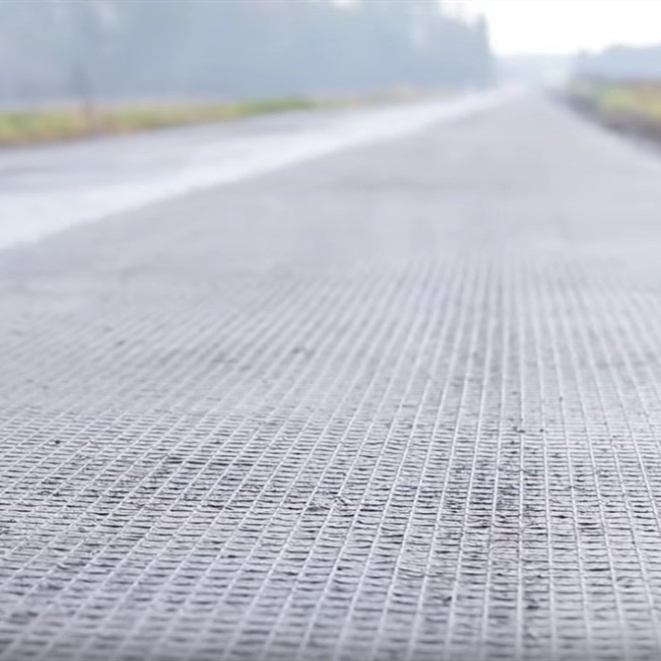

• Roadway, railway, earth bank, approach road, dock, retaining wall, flood dike.
•Dam, mudflat treatment, freight yard, spoil area, airport, stadium.
•Environment protection buildings, retaining wall, slope protection.
Parameter Data: | ||||||||
Item | GSZ30 | GSZ40 | GSZ50 | GSZ60 | GSZ80 | GSZ100 | GSZ150 | |
Tensile strength of Geogrid ≥(KN/m) | MD | 30 | 40 | 50 | 60 | 80 | 100 | 150 |
CD | 30 | 40 | 50 | 60 | 80 | 100 | 150 | |
Elongation≤(%) | MD | ≤10.0% | ||||||
CD | ≤10.0% | |||||||
Nonwoven Geotextile: | PP / PET Materials | |||||||
Peel Strength at Welding Joint point (KN) | ≥150N | |||||||
Aperture Size | 50 x 50mm / Customization | |||||||
Width(m) | 3-5.9m | |||||||
Length(m) | 25m-50m | |||||||
