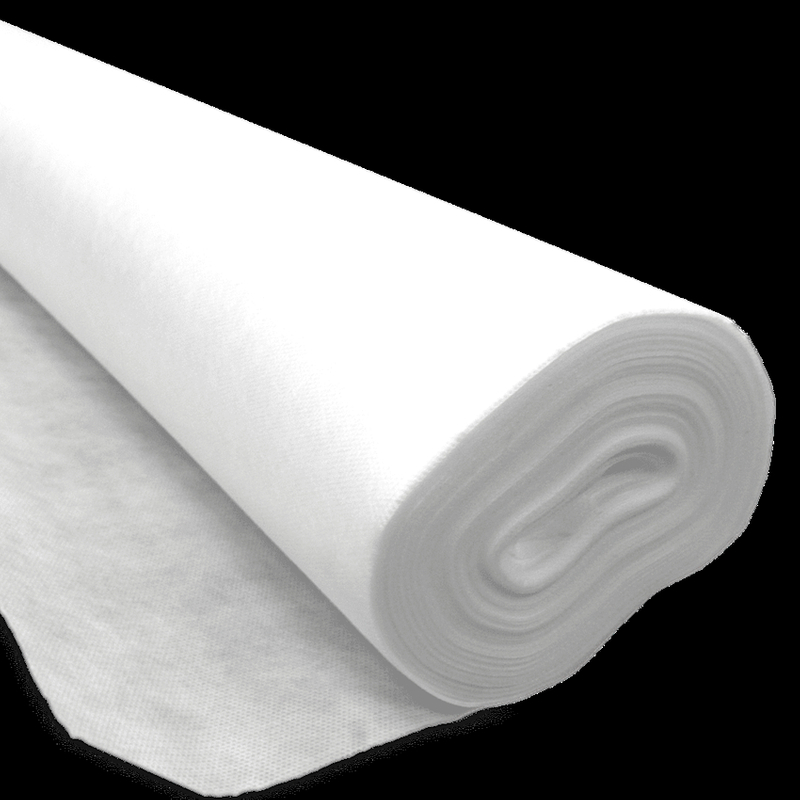

DKM PET Nonwoven Geotextiles are manufactured from PET staple fibers, which are mechanically bonded through needle-punching to form strong, flexible and dimensionally stable fabric structure, with optimum pore sizes and high permeability.
Features and Benefits:
•High tensile strength and Good gas&water permeability.
•Air permeability and High temperature.
•High soaking quality and Corrosion resistant.
•low cost and Easy installation.
Application:
•It is widely used in reinforcement of railway subgrade.
•Maintenance of highway pavement.
•Protection of sports hall, dyke.
•Isolation of hydraulic building, tunnel, beach, reclamation, environmental protection.
PET Nonwoven Geotextile Technical Data
No. | Item | Specification | |||||||||||
100 | 120 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | ||
1 | Mass variation % | -8 | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 |
2 | Thickness ㎜ | 0.9 | 1.1 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 5.0 |
3 | Width variation % | -0.5 | |||||||||||
4 | Breaking strength KN/m | 2.5 | 3.0 | 4.0 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 |
5 | Breaking elongation % | 40～80 | |||||||||||
6 | CBR burst strength KN | 0.3 | 0.4 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4.0 |
7 | Sieve size ㎜ | 0.07～0.2 | |||||||||||
8 | Vertical permeability coefficient cm/s | （1.0～9.9） ×（10-1～10-3） | |||||||||||
9 | Tear strength KN | 0.08 | 0.10 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.60 |
