Mine Flame Retardant PP Geogrid

Mine Flame Retardant PP Geogrid is made from extruded polypropylene which added fire retardant and other additive, processing by forming, punching,and stretching in longitudinal&lateral direction which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of soft and hard rock underground mining applications,as a load bearing alternative to steel/metal mesh.

Email: eric@dkgeosynthetics.com
Whatsapp/Wechat: +8613173385722
Availability:
Quantity:
  • Mine Flame Retardant PP Geogrid

Mine Flame Retardant PP Geogrid

Mine Flame Retardant PP Geogrid is made from extruded polypropylene which added fire retardant and other additive, processing by forming, punching,and stretching in longitudinal&lateral direction which provides superior stiffness, aperture stability and interlock capabilities for structural reinforcement of soft and hard rock underground mining applications,as a load bearing alternative to steel/metal mesh.

DKM-Mine Flame Retardant PP Geogrid has been proven to outperform conventional steel and metal mesh solutions. It is designed to be lighter and ideal for mine tunnel walls.It can be produced to specific roll lengths and widths.

FEATURES AND BENEFITES:

•High tensile strength.

•Flame retardant additives.

•Distribution of loads and therefore reduction in stress concentration over the soil.

•The biaxial geogrid apertures interlock with aggregate for superior confinement and stabilization of the reinforced layer, increasing its shear resistance.

•Decrease in long term deformation (creep).

•Highly increasing bearing capacity and load support capacity, resulting in improved structural performance.

•Corrosion resistant, and chemically and biologically inert.

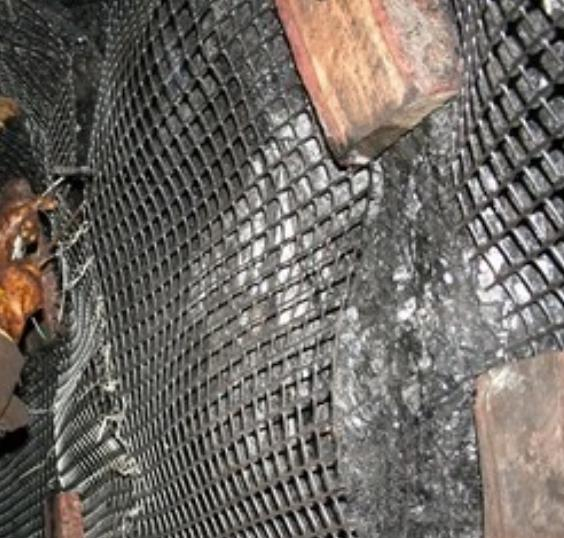

•Used for mine tunnel rib, long wall shield recovery screens and highwall screen.

图片1图片2

Technical Parameter Specification

Spec/ Items

Standard

DK15

DK20

DK25

DK30

DK40

DK45

DK50

Min-Tensile Strength MD

≥(KN/m)


ASTM D 6637

15

20

25

30

40

45

50

Min-Tensile Strength CD

≥(KN/m)

15

20

25

30

40

45

50

Physical Characters

Grid Structure

Extruded Biaxial

Materials

Stable UV Polypropylene and Fire retardant.

Color

White / Black

Roll Length*Width

Customization

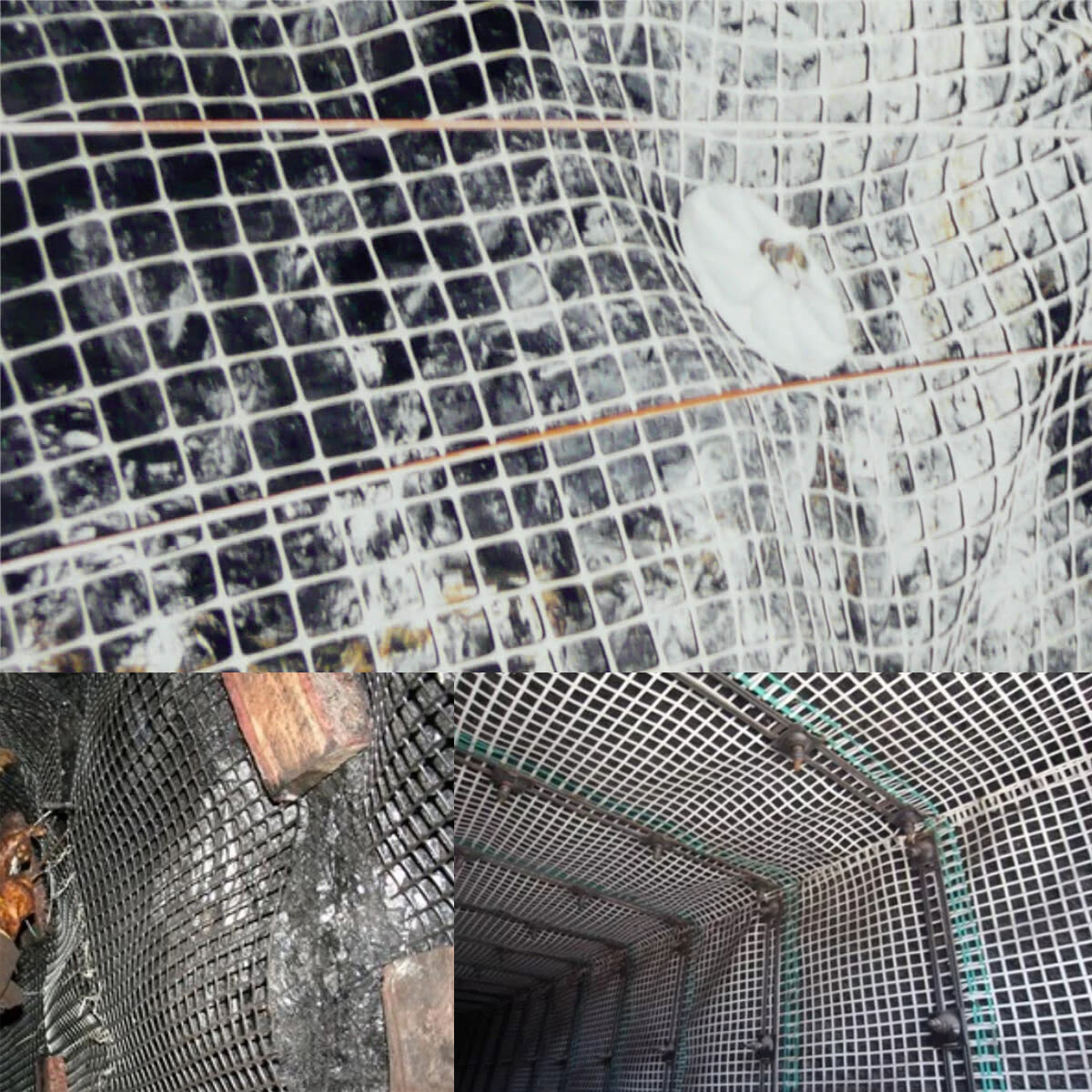

mining geogrid


Plant Workshop

车间


车间2


Storage

成品


产品2


Delivery

装柜


装柜1


Certificates


ISO
