DKM Geocell Slope & Channel Protection System

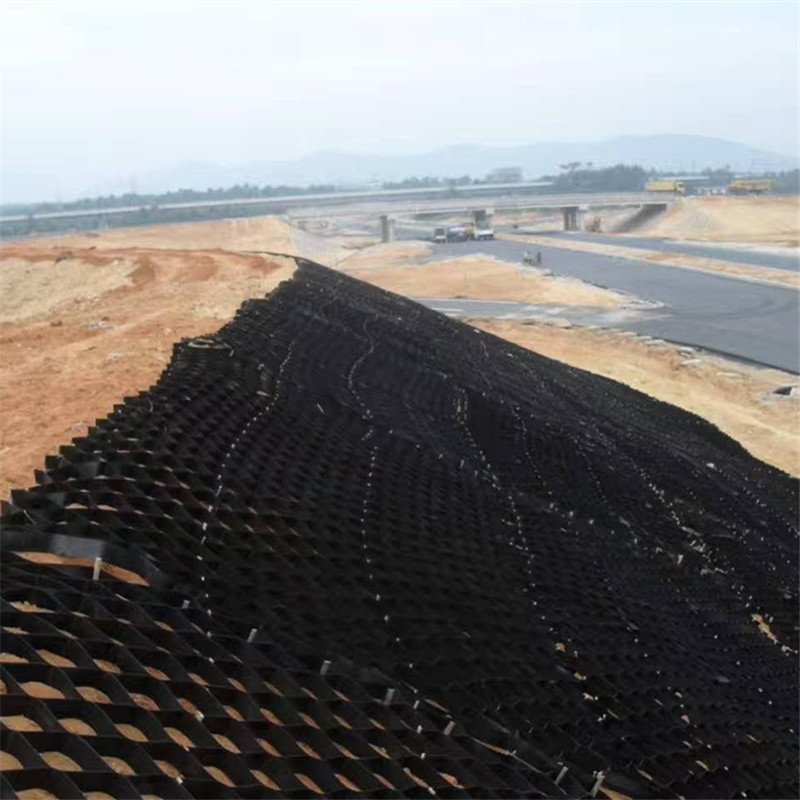

DKM-Geocell Slope & Channel Protection System is a cellular confinement system manufactured from HDPE(High Density Polyethylene ) or P.C.A sheets which welded together by ultrasonic technique. It utilised enhance slope protection by stabilising the soil and steep slopes for earth retention in construction sites and widely use for Channel and slope erosion control, Green and retaining wall reinforcement, Soil stabilization, Load support for drive way and parking lot,etc.

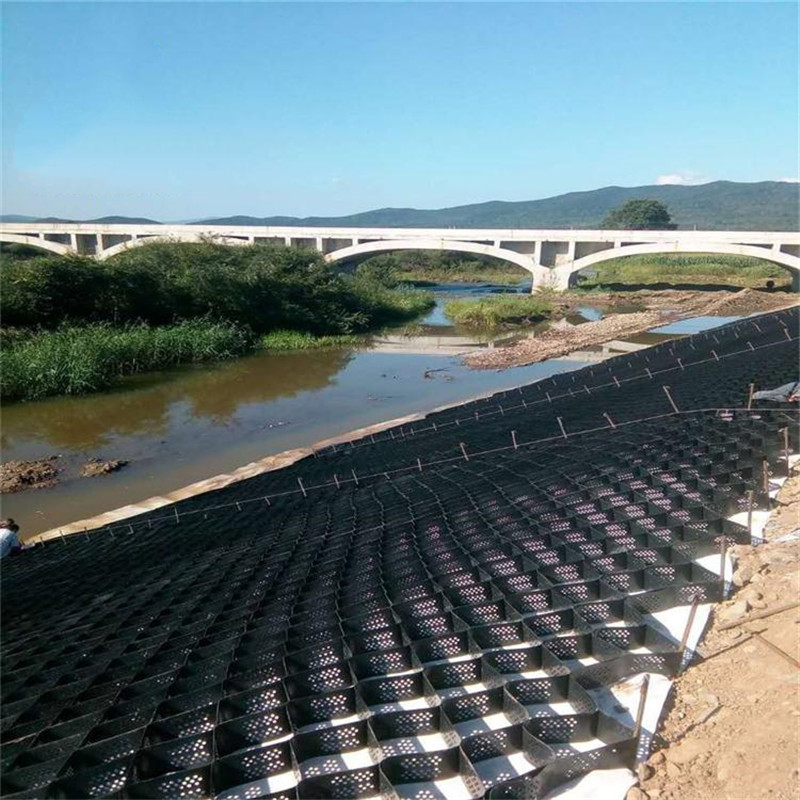

It acts as a barrier to control erosion in embankments and channel slopes, river banks, and bridge abutments. The stabilisation properties of the geocells make them ideal for the construction of roadbeds, road expansions, and parking lots.
Features:
•Flexible, light weight, chemical stability, anti-aging and anti-acid/alkali corrosion.
•Expanded Size is adjustable, the cell height also can meet different projects request.
•Excellent rigidity and toughness property, high load strength and anti-erosion ability.
•Premium tensile strength and wide environmental adaptable.
Application:
•Slope stabilization.
•Bearing the dam and retaining wall’s pressure .
•Channel protection.
•Protect the slope from landslide and mudslide.
•Erosion control for channel from water flowing.
•Alao widely used for independent wall, wharf and breakwater projects, etc.
Property | Value | Test Method | ||
Base Material | ||||
Material Composition | Virgin Polyethylene with Density of 0.935-0.965g/cm3 | ASTM D1505 | ||
Color | Black/Gray/Green | N/A | ||
Strip Properties | ||||
Sheet Thickness | After Textured:≥1.45mm | ASTM D5199 | ||
Cell&Seam Properties | ||||
Cell Details | Welding distance (mm) | Dimension of per cell after expanded(±3%) | Expanded Panel size(Customization) | |
Length(mm) | Width(mm) | |||
GC-330 | 330 | 249 | 215 | 4.5m x 5.6m |
GC-356 | 356 | 268 | 231 | 5.1m x 5.9m |
GC-445 | 445 | 335 | 290 | 4.9m x7.1m |
GC-660 | 660 | 486 | 420 | 5.0m x 9.5m |
GC-712 | 712 | 528 | 455 | 5.1m x 11.7m |
Cell depths(±2%) | 50mm,100mm,150mm,200mm | |||
Welding Seam Peel Strength(±3%) | Can customized producing according the project condition. | |||
10.0KN/m | ISO 10319 | |||
14.2KN/m | ||||
16.0KN/m | ||||
18.0KN/m | ||||
Geocell sheet Tensile Strength(±5%) | Non-perforated: >20kn/m Perforated:> 10kn/m | ISO 10319 | ||
Oxidative Induction Time (OIT) (±5%) | ≥ 20 Minutes or 100 Minutes | ASTM D5885(@ 200℃)Test by GRI GM13Testing per GRI GM13 | ||
