DKM Steel plastic Geogrid
DKM Steel plastic Geogrid is produced by Polyethylene,also add other additives,through special processing,extruding to be strips,also have high-strength steel wire reinforced inside of the strips. As the steel wires high tensile strength and low elongation make it become to a high strength reinforced strips.Then the single strips prepared and arranged in a certain distance vertically and horizontally and weld together tightly to be a interlock form structure by Ultrasonic welding technology.
•High strength and low creep deformation, suitable for various environmental soils.
•Improve the interlocking of aggregates and reinforcement of soil.
•Increase the bearing capacity of the subgrade.
•Strengthen the stability of the subgrade.
•Widely use in the earthwork engineering.

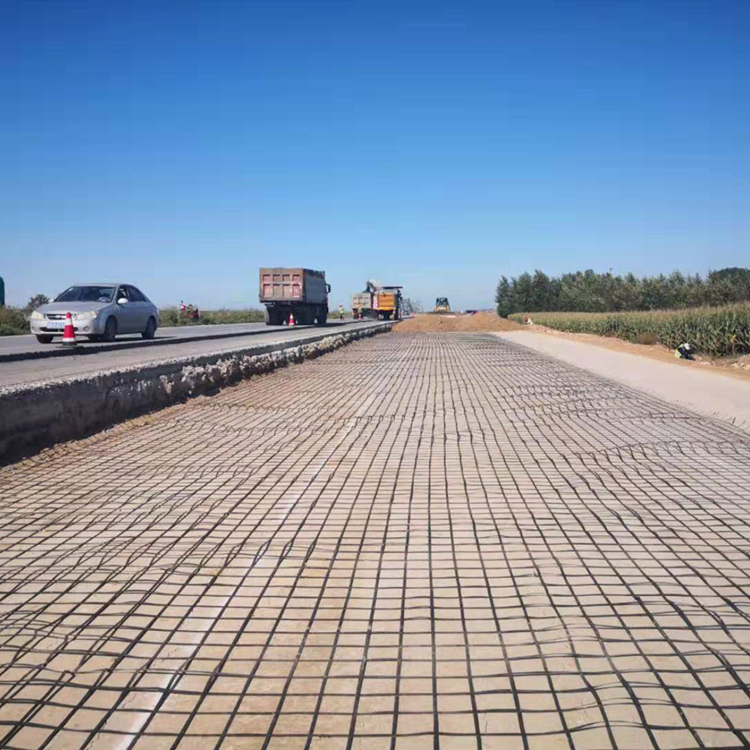

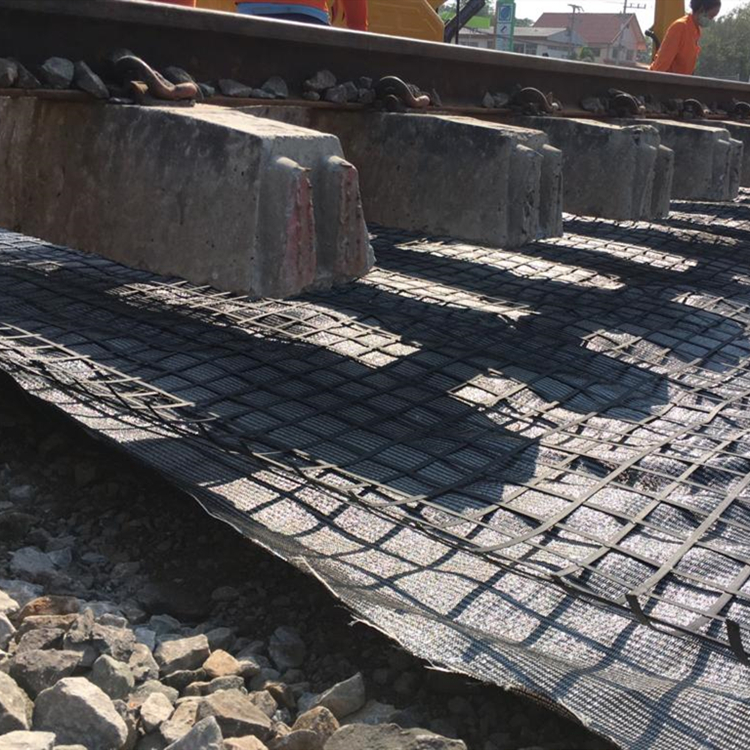

•Roadway, railway, earth bank, approach road, dock, retaining wall, flood dike.
•Dam, mudflat treatment, freight yard, spoil area, airport, stadium.
•Environment protection buildings, retaining wall, slope protection.
Technical Data Sheet Specification | ||||||||
Item | GSZ30－30 | GSZ40－40 | GSZ50－50 | GSZ60－60 | GSZ80－80 | GSZ100－100 | GSZ150－150 | |
Tensile strength ≥(KN/m) | MD | 30 | 40 | 50 | 60 | 80 | 100 | 150 |
CD | 30 | 40 | 50 | 60 | 80 | 100 | 150 | |
Elongation≤(%) | MD | ≤3% | ||||||
CD | ≤3% | |||||||
Peel Strength at Welding Junction (N) | 100N~300N | |||||||
Aperture size(cm x cm) | 5cm x 5cm, 7.5cm x 7.5cm, 10cm x 10cm, 12.5cm x12.5cm, etc | |||||||
Width(m) | 3-5.9m | |||||||
Length(m) | 25m-50m | |||||||
