DKM HDPE Slope Protection Geocell

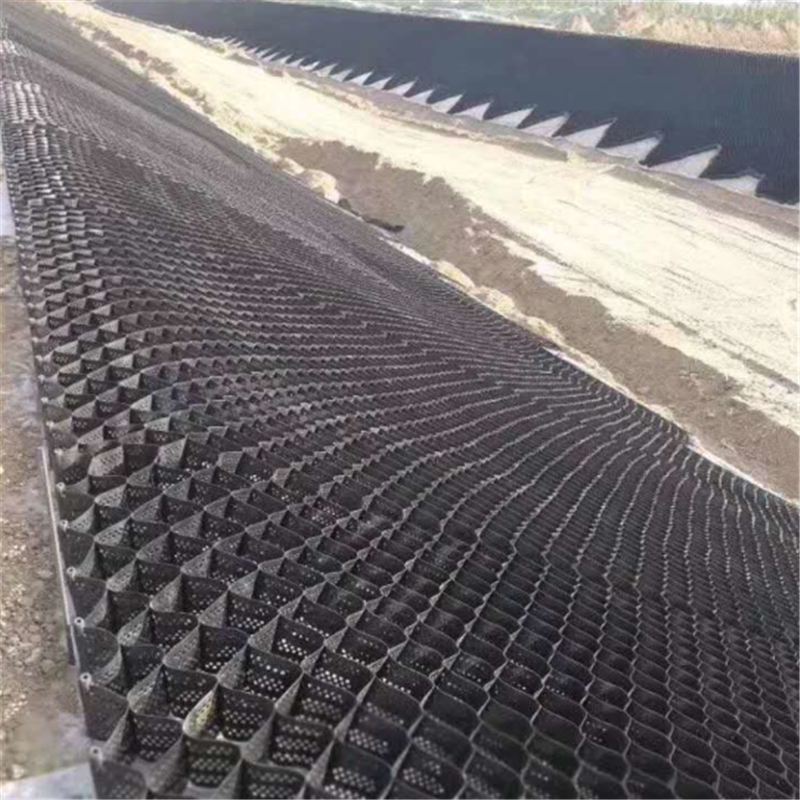

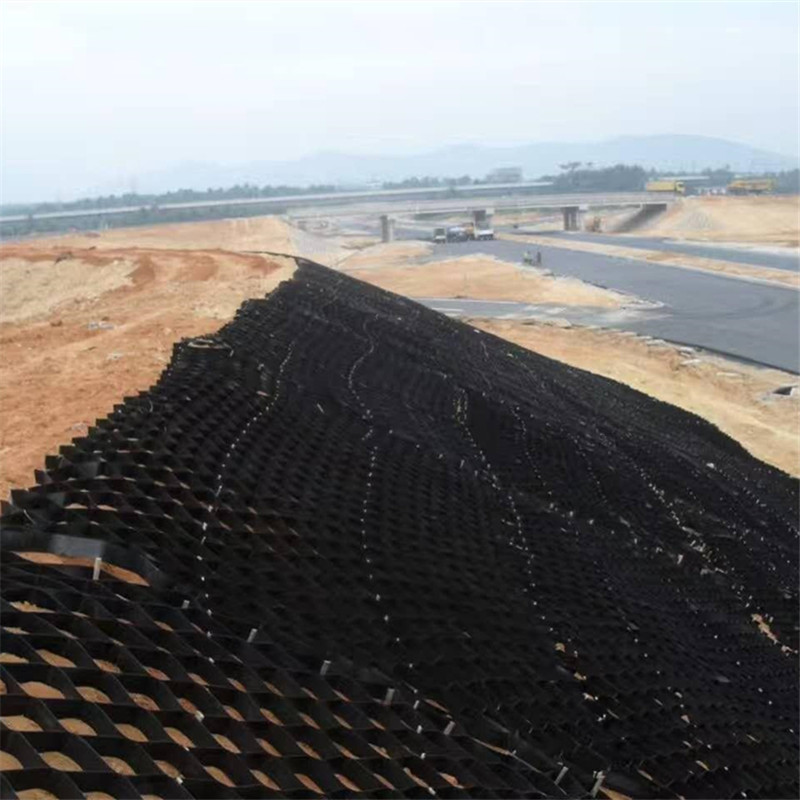

DKM-Slope Protection Geocell is a professional-grade solution designed to combat erosion and stabilize slopes with utmost efficiency.
Slope Protection Geocell is a highly durable and efficient solution designed to meet the needs of various applications. Whether you require slope protection for your farm, home, or industrial site, our geocell offers exceptional performance and reliability.
Built with high tensile strength, Slope Protection Geocell ensures maximum stability and resistance against external forces. It is specifically engineered to combat erosion and effectively secure materials in place, making it an ideal choice for slopes and embankments.
Features:
•Flexible, light weight, chemical stability, anti-aging and anti-acid/alkali corrosion.
•Expanded Size is adjustable, the cell height also can meet different projects request.
•Premium tensile strength and wide environmental adaptable.
Application:
•Bearing the dam and retaining wall’s pressure .
•Protect the slope from landslide and mudslide.
•Erosion control for channel from water flowing.
•Alao widely used for independent wall, wharf and breakwater projects, etc.
Property | Value | Test Method | ||
Base Material | ||||
Material Composition | Virgin Polyethylene with Density of 0.935-0.965g/cm3 | ASTM D1505 | ||
Color | Black/Gray/Green | N/A | ||
Strip Properties | ||||
Sheet Thickness | After Textured:≥1.45mm | ASTM D5199 | ||
Cell&Seam Properties | ||||
Cell Details | Welding distance (mm) | Dimension of per cell after expanded(±3%) | Expanded Panel size(Customization) | |
Length(mm) | Width(mm) | |||
GC-330 | 330 | 249 | 215 | 4.5m x 5.6m |
GC-356 | 356 | 268 | 231 | 5.1m x 5.9m |
GC-445 | 445 | 335 | 290 | 4.9m x7.1m |
GC-660 | 660 | 486 | 420 | 5.0m x 9.5m |
GC-712 | 712 | 528 | 455 | 5.1m x 11.7m |
Cell depths(±2%) | 50mm,100mm,150mm,200mm | |||
Welding Seam Peel Strength(±3%) | Can customized producing according the project condition. | |||
10.0KN/m | ISO 10319 | |||
14.2KN/m | ||||
16.0KN/m | ||||
18.0KN/m | ||||
Geocell sheet Tensile Strength(±5%) | Non-perforated: >20kn/m Perforated:> 10kn/m | ISO 10319 | ||
Oxidative Induction Time (OIT) (±5%) | ≥ 20 Minutes or 100 Minutes | ASTM D5885(@ 200℃)Test by GRI GM13Testing per GRI GM13 | ||
